FCTProvisionaLayerThicknesses summed the thickness flux through every edge of a cell at every layer of that cell, as MPAS-Ocean does. Omega computes FluxPseudoThickEdge and NormalTransportVelocity only on an edge's active layers, and the other entries keep the fill value (9.97e36) they get when their fields are attached. Wherever a cell has a layer that the cell across one of its edges lacks (every layer of a coastal cell, and the bottom layers of cells next to shallower ones), HProv picked up a fill-times-fill term of order 1e70 and HProvInv became of order 1e-71. The limiter's bounds test then reduced to the signs of the local extrema. A cell's own bound stopped limiting antidiffusive outflow once its stencil held a negative value, and never limited antidiffusive inflow of a positive tracer. Bottom cells next to water below 0 C were then cooled by the unlimited antidiffusive part of the centered flux, far below all of their neighbors (E3SM-Project#588). Skip edges outside [MinLayerEdgeBot, MaxLayerEdgeTop], as the pseudo-thickness flux divergence and ProvPseudoThickness already do. Co-Authored-By: Claude Opus 5.5 (1M context) <noreply@anthropic.com>
Author
Testing on chrysalisTested the merge of #628 (
chrysalis, intel, openmpiPolaris
|
This was referenced Oct 24, 2026
Author
Testing on frontierTested the merge of #628 (
frontier, craygnu, mpichPolaris
|
Author
Testing on pm-cpu and pm-gpuTested the merge of #628 (
pm-cpu, gnu, mpichPolaris
|
Author
Testing on auroraTested the merge of #628 (
aurora, intel, mpichPolaris
|
This was referenced Oct 24, 2026
Author
|
Because of the Aurora failures, I need to do a new Polaris deployment (E3SM-Project/polaris#897) before I rerun testing. |
Author
|
It turns out E3SM-Project/polaris#897 is not a good fix. It would have required a new merge of E3SM/master into Omega/develop. Instead, I patched Polaris to keep working with Omega's current Aurora environment (E3SM-Project/polaris#899) and things worked, see above. |
overfelt
approved these changes
Oct 24, 2026
xylar
marked this pull request as ready for review
October 24, 2026 21:32
Author
Member
|
I believe there is a deeper issue here, that I inadvertently introduced. Could you check if #638 has the same effect as this PR and also fixes #588 ? The idea behind this change seems good to me, but I would implement it by adjusting loop bounds, even if that requires adding a barrier. That's because adding an I also think that we should discuss if we want to skip inactive edges when computing divergence of fluxes that are proportional to velocity. Technically, if the velocity field satisfies the 3-zone masking, then it should not be necessary to skip inactive edges, since the flux value will be zero for them. |
20 tasks done
Author
|
Replaced by #638, which fixes the transport velocity's masking at its source. Its results are bit-for-bit identical to this PR's on Chrysalis (#638 (comment)). Posted by Claude Code on @xylar's behalf. The testing, analysis and wording above are AI-authored; please check them accordingly. |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.

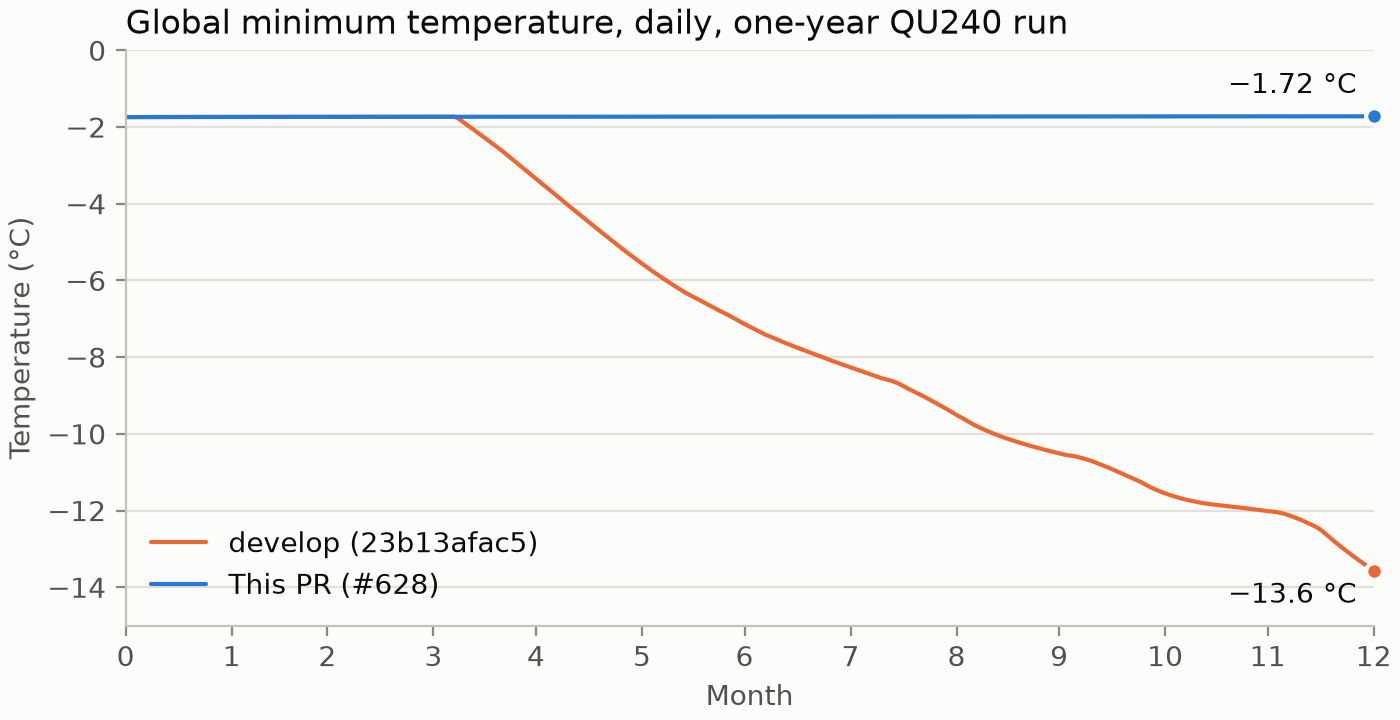

Horizontal FCT summed the thickness flux through every edge of a cell, including edges with no water at that layer, where the flux terms hold fill values. At every layer of a coastal cell, and at the bottom layers of cells next to shallower ones, the provisional thickness came out near 1e70 m, and the limiter stopped keeping tracers within their local bounds. Since #447, this has let bottom cells in realistic global runs cool far below all their neighbors. The sum now skips those edges.
This changes answers wherever horizontal FCT is on and a cell has an inactive edge.
This skips the inactive edges inside the existing loop over layers rather than reusing
ProvPseudoThickness, which holds the same sum. That loop keeps each layer's sum in one thread, so it stays race-free on GPUs when a cell's edges start at different layers, as they will in the planned z-level configuration with a minimum top layer; summing edge by edge, asProvPseudoThicknessdoes, would then need a team barrier between edges. Keeping the loop also leaves runs without inactive edges bit-for-bit.Checklist
Linting
Building
Testing
aurora, intel, mpich
aurora, intelgpu, mpich
chrysalis, intel, openmpi
frontier, craygnu, mpich
frontier, craygnu-mphipcc, mpich
pm-cpu, gnu, mpich
pm-gpu, gnugpu, mpich
Provide relevant details in a comment to the PR titled
TestingFixes #588
Posted by Claude Code on @xylar's behalf. The testing, analysis and wording above are AI-authored; please check them accordingly.
