bawbel-gate

Runtime enforcement for MCP agents. A deterministic proxy between the agent host and its MCP servers that enforces capability manifests, session taint, and a non-configurable rule-of-two trifecta invariant, with a hash-chained audit log.

The gate never reads model output. Every decision is made on structured JSON-RPC.

Design · Architecture · Security · Contributing

pip install bawbel-gate

bawbel-gate serve --config gate.yaml --learn         # observe, enforce nothing
bawbel-gate learn synthesize --out manifests/draft/  # draft manifests
bawbel-gate serve --config gate.yaml                 # enforce

serve is launched by your MCP client, not run by hand. Before the first serve, write gate.yaml and one manifest per server. Usage walks through each step and lists what is not supported yet; Commands lists every command and option.

Status: v0.1.0 feature-complete (pre-release)

The enforcement core (policy engine, taint tracking, trifecta invariant, audit chain), integrity pinning, learning mode, the embedded console, and the bawbel-hub server are implemented. Gaps are listed under Not yet supported. The test suite passes, including property, replay, and corpus tests. Releases are published to PyPI as bawbel-gate. Pre-1.0: interfaces may change between minor versions.

How it works

flowchart TD
    HOST["Agent host<br/>JSON-RPC tools/call"]
    M["Capability manifest<br/>DESIGN.md 5.2 steps 1-4:<br/>grant match, conditions,<br/>argument guards"]
    T["Session taint<br/>5.2 step 5: taint rules,<br/>lattice_min"]
    TRI["Trifecta invariant<br/>5.2 step 6: third leg<br/>forces at least approve.<br/>Not configurable"]
    A["Allow<br/>call reaches the server"]
    AP["Approve<br/>human approval,<br/>timeout denies"]
    D["Deny<br/>JSON-RPC error -32031<br/>with the deny reason"]
    AUD[("Hash-chained audit log<br/>every decision,<br/>append only")]
    SRV[("MCP servers")]

    HOST --> M --> T --> TRI
    M -->|"no grant, failed condition, guard hit"| D
    TRI --> A
    TRI --> AP
    TRI --> D
    AP -->|granted| A
    AP -->|"denied or timeout"| D
    A --> SRV
    A --> AUD
    AP --> AUD
    D --> AUD

    classDef check fill:#EEEDFE,stroke:#534AB7,color:#26215C
    classDef ok fill:#E1F5EE,stroke:#0F6E56,color:#04342C
    classDef warn fill:#FAEEDA,stroke:#854F0B,color:#412402
    classDef bad fill:#FCEBEB,stroke:#A32D2D,color:#501313
    class M,T,TRI check
    class A ok
    class AP warn
    class D bad

Loading

Every tools/call passes three checks, in order. The capability manifest check covers DESIGN.md 5.2 steps 1 to 4: absence of a grant is a deny, and a failed condition or an argument guard hit is a deny, never a fallthrough to the next grant. Taint rules and the trifecta invariant can only move an effect down the lattice (allow to approve to deny), never up, so the manifest's base grants are a static ceiling on what a session can do. The trifecta step is not configurable: no manifest field, environment variable, or flag disables it. Every decision is appended to the hash-chained audit log, and no decision reads model output, only structured JSON-RPC.

The problem

Agent hosts grant flat trust to everything in context. A tool response, a skill file, and a user message carry equal instruction authority inside the model, because the model processes one token sequence with no privilege boundary. That is not fixable at the model layer. bawbel-gate fixes the consequence layer instead: a deterministic proxy between the agent host and its MCP servers that enforces per-component capability grants, session taint, and the trifecta invariant, regardless of what the model decides to do.

Usage

The gate is a stdio MCP server. Your MCP client launches bawbel-gate serve; the gate spawns each upstream MCP server as a stdio subprocess and proxies between them. The upstream servers' tools reach the client as {server}__{tool}.

Install

From PyPI (Python 3.10 or later):

pip install bawbel-gate
bawbel-gate --version

The ops extra adds the OpenTelemetry exporter. Without it, decision spans are no-ops.

pip install "bawbel-gate[ops]"
export OTEL_EXPORTER_OTLP_ENDPOINT=http://localhost:4317

Unreleased changes on the develop branch:

pip install "git+https://github.com/bawbel/gate.git@develop"

Install (development)

git clone https://github.com/bawbel/gate.git
cd gate
git checkout develop
pip install -e ".[dev]" --break-system-packages
pytest                        # full suite
pre-commit run --all-files    # lint gate

1. Write gate.yaml

schema: bawbel/gate-config/v1    # exact string, required
# absolute path; the directory must already exist
audit_log: /home/you/.bawbel/gate.audit.jsonl
approval:
  channel: terminal          # see "Approvals" in step 6
  timeout_seconds: 120       # 5 to 3600
  on_timeout: deny           # the only accepted value
servers:
  - name: github             # tools reach the client as github__<tool>
    command: github-mcp
    args: []
    manifest: manifests/github-mcp.cap.yaml
  - name: filesystem
    command: fs-mcp
    args: ["--root", "/work"]
    manifest: manifests/fs-mcp.cap.yaml

• manifest paths resolve relative to the directory that contains gate.yaml. Every server needs a manifest file, in learning mode too (step 3).
• audit_log resolves relative to the gate process's working directory, which the MCP client chooses. Use an absolute path. Default: gate.audit.jsonl.
• Server names must be unique. At least one server is required.
• Upstream servers inherit the gate's environment. Put their credentials there (the env block of the gate's client entry, step 2) and remove them from the upstream entries, so a direct connection to an upstream server fails auth.

2. Point your MCP client at the gate

Replace the upstream server entries in the client config with one entry for the gate:

{
  "mcpServers": {
    "bawbel-gate": {
      "command": "bawbel-gate",
      "args": ["serve", "--config", "/home/you/.bawbel/gate.yaml"],
      "env": {"GITHUB_TOKEN": "<token>"}
    }
  }
}

Remove the direct entries for the upstream servers. A host that can reach a server directly bypasses the gate (DESIGN.md 10, item 3).

3. Learn: record what the agent does

Learning mode forwards every call, enforces nothing, and still writes the audit chain.

It loads each server's manifest at startup. For a server that has no manifest yet, point gate.yaml at a deny-all placeholder. Learning mode does not enforce it:

schema: bawbel/capability-manifest/v1
subject: {kind: mcp-server, name: github-mcp}
provenance_class: tool.response.github
instruction_authority: none
trifecta: {private_data: true, untrusted_content: true, external_comms: true}
grants:
  tools:
    - name: "*"
      effect: deny

Observations are appended to learn.observations.jsonl in the gate process's working directory when the session ends. serve has no option to move that file, so start the gate from a known directory (serve -c is short for serve --config):

{
  "mcpServers": {
    "bawbel-gate": {
      "command": "sh",
      "args": [
        "-c",
        "cd /home/you/.bawbel && exec bawbel-gate serve -c gate.yaml --learn"
      ]
    }
  }
}

The observations file holds the first 32 characters of every argument value in clear text. Treat it as sensitive and delete it after synthesis.

4. Review and synthesize draft manifests

cd /home/you/.bawbel
bawbel-gate learn report                             # tools and argument shapes
bawbel-gate learn synthesize --out manifests/draft/  # a draft per server

synthesize overwrites an existing <server>.cap.yaml in the output directory. Write to a separate directory, review each draft, then copy it to the path gate.yaml names.

What a draft contains, and what to review:

Draft content	Review
allow for each observed tool, approve for tool names that look like writes	Remove grants the agent should not have
conditions narrowed to the common prefix of observed argument values	Check each pattern
Wildcard "*": deny as the last grant	Keep it
All three trifecta flags true	Set each flag to what the server actually does
Taint rule: once this server has responded, its tools need approve while external_comms is true	Keep or tighten; no rule can loosen step 6
Argument guard: outbound secret scan, 64 KiB byte cap	Keep
integrity_watch: tool_schema, on_drift: suspend	Pin the schema in step 5

Minimal hand-written manifest (DESIGN.md 4.1 has the annotated version):

schema: bawbel/capability-manifest/v1
subject:
  kind: mcp-server
  name: github-mcp
provenance_class: tool.response.github
instruction_authority: none
trifecta:
  private_data: true
  untrusted_content: true
  external_comms: true
grants:
  tools:
    - name: get_issue
      effect: allow
    - name: create_pull_request
      effect: allow
      conditions:
        args.base_repo: {pattern: "myorg/*"}
    - name: "*"
      effect: deny

5. Lint, pin, and harden

Lint is a static check. It runs in CI without starting any server:

bawbel-gate lint manifests/
bawbel-gate lint manifests/prod \
  --forbid-effect allow --tools-with external_comms

The second command fails if any manifest that declares external_comms: true contains an allow grant, so no tool on an egress-capable server can run without an approval. lint reads *.yaml files recursively; other extensions are skipped.

Pin each server's tool schema after reviewing its tool descriptions. verify takes the result.tools array of the server's tools/list response:

{
  jq -nc '{jsonrpc: "2.0", id: 1, method: "initialize",
           params: {protocolVersion: "2025-06-18", capabilities: {},
                    clientInfo: {name: "pin", version: "0"}}}'
  jq -nc '{jsonrpc: "2.0", method: "notifications/initialized"}'
  jq -nc '{jsonrpc: "2.0", id: 2, method: "tools/list"}'
} | github-mcp \
  | jq -c 'select(.id == 2) | .result.tools' > github-tools.json

# compare with the stored pin
bawbel-gate verify github-tools.json manifests/github-mcp.cap.yaml
# write the pin
bawbel-gate verify github-tools.json manifests/github-mcp.cap.yaml --accept

--accept stores the hash in the manifest's tool_schema_integrity field and rewrites the YAML file. Comments are not preserved. In enforcement mode, a pinned server whose live tools/list hashes differently is suspended at session start: its tools are withheld and calls to it are denied with drift:suspended.

Merge an AVE record's mitigation stanza into a manifest:

# print the diff only
bawbel-gate harden --ave AVE-2026-00041 \
  --manifest manifests/github-mcp.cap.yaml
# apply it
bawbel-gate harden --ave AVE-2026-00041 \
  --manifest manifests/github-mcp.cap.yaml --write

harden reads mitigations/ave-mitigations.json relative to the current directory. That file ships in this repository, not in the installed package: run from a clone, or pass --mitigations PATH. Stanzas whose review_status is not reviewed are refused unless --allow-unreviewed is passed.

6. Enforce

Remove --learn from the client args. In each session:

1. Each pinned server's tools/list is hashed and compared to its pin. Drift suspends the server.

2. tools/list returns {server}__{tool} names, without tools whose grant resolves to deny.

3. Each tools/call runs the pipeline in How it works. An allowed call is forwarded. A denied call is not forwarded and returns:

   {
     "jsonrpc": "2.0",
     "id": 7,
     "error": {
       "code": -32031,
       "message": "bawbel-gate: denied",
       "data": {"reason": "condition_failed", "ave": []}
     }
   }

   data.reason is one of the deny reasons, except that a deny produced by a deny grant or a taint rule currently carries resolved. data.ave is always empty in the current code.

4. Every decision is appended to audit_log. The chain head is printed on stderr when the session ends.

Approvals

The terminal channel writes the approval prompt (tool, secret-redacted arguments, reason, taint classes, timeout) to stderr and reads the answer from stdin. When an MCP client launches the gate, stdin is the client's JSON-RPC stream, so the client's next message is read as the answer. The call is denied and audited as approval_denied, and the consumed client message gets no response. In a client-launched deployment, plan for every approve effect to resolve to deny. The webhook and slack channels pass config validation but are not implemented, and the console approval endpoint is not connected to the proxy.

7. Audit and operate

bawbel-gate audit verify /home/you/.bawbel/gate.audit.jsonl
bawbel-gate audit tail /home/you/.bawbel/gate.audit.jsonl -n 50 --follow
bawbel-gate posture --audit-log /home/you/.bawbel/gate.audit.jsonl

audit verify exits 0 with ok: N records, chain intact, or exits 1 with the first broken link on stderr. posture and clear default to bawbel-audit.jsonl, not to the gate's audit_log; pass --audit-log.

bawbel-gate clear --session ID --confirm --audit-log FILE appends a SESSION_CLEAR record. It does not signal a running gate. Taint lives in the gate process and ends with the session, which ends when the client disconnects.

serve --console 127.0.0.1:7317 starts the read-only console on loopback (see Embedded console).

Not yet supported

• Upstream servers that validate the MCP handshake. The gate sends initialize with empty params and no notifications/initialized. Servers built on the official MCP Python SDK reject that handshake, and the gate then exposes none of their tools (#27).
• MCP methods other than initialize, tools/list, and tools/call. They return -32601, and the gate advertises only the tools capability, so resources and prompts are not reachable through the gate (DESIGN.md 3.3).
• Transports other than stdio, on either side of the gate.
• Clean stdout. The mode banner and the console URL with its token are written to stdout, the JSON-RPC channel, and clients log them as parse errors (#28).
• Error responses for malformed JSON-RPC from the client. A line that is not JSON is dropped with a stderr warning: no response, no audit record.
• Fleet ingest from gates to bawbel-hub. Gates do not send records yet, and the hub has no per-gate identity or TLS. See bawbel-hub (M7).

Commands

Every command takes --help. bawbel-gate --version prints the installed version.

Command	What it does	Arguments and options	Notes
serve	Runs the proxy on stdio. Launched by the MCP client	--config, -c PATH (required); --learn; --console HOST:PORT (env BAWBEL_CONSOLE_ADDR)	Enforces unless --learn. --console HOST without a port uses 7317. Exits when the client closes stdin
learn report	Prints tools called per server, call counts, argument types, and argument prefixes	--obs PATH (default learn.observations.jsonl)	Reads the file learning mode wrote
learn synthesize	Writes one draft manifest per observed server	--out DIR (required); --obs PATH (default learn.observations.jsonl)	Overwrites <server>.cap.yaml in DIR. Output is a draft, not policy
lint MANIFEST_DIR	Validates every *.yaml under MANIFEST_DIR against the capability manifest schema	--forbid-effect EFFECT; --tools-with FLAG; --schema (accepted, no effect)	--forbid-effect fails on any EFFECT grant; --tools-with limits that to manifests whose trifecta.FLAG is true. Exit 1 on any failure
verify TOOLS_JSON MANIFEST	Compares a tools/list result against the manifest's tool_schema_integrity pin	--accept	No pin: prints the hash, exit 0. Drift: exit 1 unless --accept. --accept rewrites the manifest without comments
harden	Merges an AVE record's capability_mitigation stanza into a manifest	--ave AVE_ID (required); --manifest FILE; --write; --allow-unreviewed; --mitigations PATH (default mitigations/ave-mitigations.json)	Prints the diff. Writes only with --write. Refuses unreviewed stanzas by default
audit verify FILE	Replays the hash chain	none	Exit 0: ok: N records, chain intact. Exit 1: first broken link on stderr
audit tail FILE	Prints the last audit records as JSONL	-n, --lines N (default 20); -f, --follow
posture	Prints an agent risk posture report from an audit log	--audit-log PATH (default bawbel-audit.jsonl, env BAWBEL_AUDIT_LOG); --json
clear	Appends a SESSION_CLEAR audit record for a session	--session ID (required); --confirm (required); --audit-log PATH (default bawbel-audit.jsonl)	Does not reach a running gate
enroll	Enrolls this gate with a bawbel-hub	--hub URL (required); --token TOKEN (required)	Prints the assigned gate_id
hub serve	Runs the bawbel-hub ingest service and fleet console	--db PATH (default bawbel-hub.db, env BAWBEL_HUB_DB); --host (default 127.0.0.1, env BAWBEL_HUB_HOST); --port (default 8443, env BAWBEL_HUB_PORT)	Prints the admin token at startup
hub token new	Mints a single-use enrollment token	--db PATH (default bawbel-hub.db, env BAWBEL_HUB_DB)	Pass the token to enroll --token

What is built

Milestone	Component	Status
M0	Project scaffold, schemas, migration script	done
M1	MCP multiplexer, learning mode, audit skeleton	done
M2	Policy engine, taint tracker, trifecta invariant, audit chain	done
M3	Integrity pinning, drift detection, harden --ave	done
M4	Approval UX budget, benign corpus, latency gates	done
M5	OTel spans, CEF/syslog export, posture report	partial: no CEF/syslog exporter
M6	Embedded console + Console API	done
M7	bawbel-hub: fleet ingest, state store, enrollment	partial: gate-side push not wired

Policy engine (M2)

Six-step decision pipeline per DESIGN.md 5.2:

1. Match grant by tool name (exact then wildcard).
2. No match -> deny: no_grant. Fail closed.
3. Conditions fail -> deny: condition_failed. No fallthrough to next grant.
4. Argument guards: secret scan and byte cap.
5. Taint rules: lattice_min only, effects never rise.
6. Trifecta invariant: private_touched AND untrusted_seen AND external_comms -> at least approve. Cannot be disabled by any manifest field or flag.

Effect lattice: allow (2) > approve (1) > deny (0). Deny absorbs everything.

Trifecta invariant

The rule-of-two protection against prompt injection exfiltration. When a session has touched private data, seen untrusted content (a tool response, a web fetch, an issue body), and calls a tool with external comms capability, a human must approve. This is not configurable. No manifest field, environment variable, or debug flag can bypass it.

Integrity pinning (M3)

Tool schemas are hashed at review time (bawbel-gate verify). On each session start the gate re-hashes and compares. Any mutation -- a poisoned description, an injected tool, a rug-pull -- is detected as drift. The server is suspended and all its tools withheld until the operator reviews the changed tool definitions and runs bawbel-gate verify --accept, which stores the new hash. verify reports the stored and current hashes; it does not produce a diff.

Audit log (M2)

Append-only JSONL. Every record carries hash = sha256(canonical(record) || prev). The chain is verified on demand (bawbel-gate audit verify). Argument payloads are hashed, never stored (args_sha256). The forensic record is local and tamper-evident; OTel decision spans (ops extra) are an operational feed on top of it.

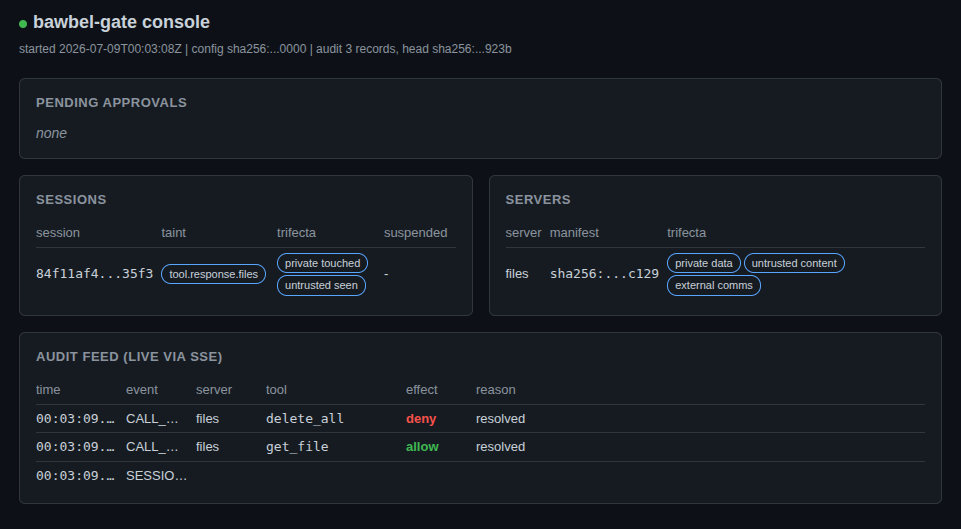

Embedded console (M6)

bawbel-gate serve --console 127.0.0.1:7317 starts a loopback HTTP server. A random bearer token is printed once at startup. Endpoints:

Endpoint	Method	Description
/v1/state	GET	Full snapshot: sessions, servers, pending approvals, audit head
/v1/events	GET	SSE stream of audit records as they are written
/v1/approvals/{id}	POST	Console approval channel (race-safe: first writer wins). Not yet connected to the proxy; see Approvals
/	GET	Embedded UI bundle

The console is read-only except for the approval endpoint. No endpoint can issue tool calls, edit manifests, or clear taint; those remain CLI-only.

/v1/state reflects live session taint and per-server manifest state as the gate runs:

bawbel-hub (M7)

Self-hosted fleet manager for teams running more than one gate. Push-only by design: the hub never connects to a gate. The hub side below is implemented. The gate-side push client (ingest/client.py) is not wired into serve, so gates do not send records yet.

Also not implemented: per-gate identity and TLS. Ingest authenticates with the hub's shared admin token (the one hub serve prints at startup), gate_id is taken from the request path, and hub serve listens on plain HTTP. DESIGN.md 14.3 specifies a per-gate mTLS client certificate. Enrollment tokens are single-use but do not expire.

• Ingest service (POST /v1/gates/{gate_id}/records): verifies the hash chain per session and stores records idempotently by (gate_id, session_id, seq). A batch with a broken chain is rejected with HTTP 409 chain_mismatch; nothing from it is stored.
• Fleet state store: SQLite, fully rebuildable from raw records.
• Single-use enrollment tokens: bawbel-gate hub token new, then bawbel-gate enroll --hub URL --token TOKEN.
• Fleet posture API: GET /v1/fleet/state returns per-gate allow/approve/deny counts, trifecta trips, and drift events.

Deny reasons

The reasons the code sets in data.reason on a deny. Each deny carries exactly one:

Reason	Cause
no_grant	No grant matched the tool name, or the name is not {server}__{tool}
resolved	The matched grant's effect is deny (including the "*" wildcard), or a taint rule lowered the effect to deny
condition_failed	A matched grant's condition was not satisfied
guard:secret_scan	An argument contained a secret pattern
guard:byte_cap	An argument exceeded the outbound byte cap
approval_denied	The approval was denied. Under an MCP client, the terminal channel also produces this when it consumes a client message (see Approvals)
approval_timeout	No approval answer within approval.timeout_seconds
drift:suspended	The server is suspended after tool-schema drift, or the {server} prefix names no configured server

trifecta_third_leg is the reason on an approve decision, not on a deny. If that approval is denied or times out, the deny carries approval_denied or approval_timeout. A request line that is not valid JSON is dropped with a stderr warning naming parse_error; no deny is sent.

Alertable events

DESIGN.md 8.5 defines six event classes. The gate sends an event as an OTel span only when an OTel tracer is configured (ops extra); otherwise sending is a no-op. The audit log records the underlying decisions either way.

Event	Default severity	Meaning	Emitted today
gate.drift.detected	high	Supply-chain mutation post-review	yes, at session start
gate.trifecta.trip	medium	Injection precondition reached	no
gate.deny.burst	medium	Agent probing outside granted surface	no
gate.secretscan.hit	high	Exfiltration attempt via arguments	no
gate.approval.timeout	low	Unattended agent hit a human gate	no
gate.chain.gap	critical	Audit log tamper indicator	no; the hub returns HTTP 409

Non-goals

• Not a prompt filter. Every enforcement decision reads structured JSON-RPC only; the gate never consults what the model said.
• No fail-open mode, no configurable trifecta bypass, no "trust this server fully" toggle.
• No inbound connections to gates, ever, in any deployment shape.
• No argument payloads in the audit log. Records carry args_sha256. Learning-mode observations are a separate file (Usage, step 3).

Documentation

• DESIGN.md - normative specification.
• ARCHITECTURE.md - ecosystem map.
• docs/LANGUAGE.md - canonical terminology.
• CHANGELOG.md - notable changes since the M0-M7 baseline.

Related projects

• AVE - the behavioral vulnerability classification standard bawbel-gate enforces against (bawbel-gate harden --ave), an independent project (aveproject/ave).
• bawbel-scanner - static detection for agent codebases, MCP configs, and server cards.
• PiranhaDB - the queryable AVE corpus API. No public endpoint yet.

Security

See SECURITY.md for the disclosure policy. Do not open a public issue for a vulnerability.

License

Apache-2.0. The gate is fully standalone and open. bawbel-hub (fleet management for more than one gate) is the paid tier; see DESIGN.md 14 for the boundary.

Contributing

See CONTRIBUTING.md. Read DESIGN.md before opening a PR that touches policy/, taint/, audit/, or integrity/: behavior that diverges from the spec needs a DESIGN.md change first, not a larger diff. Commits must carry a DCO sign-off (git commit -s); see GOVERNANCE.md for who decides what, and CODE_OF_CONDUCT.md for how we treat each other while doing it.
