Blob Packs and the BRCD layout: media in dumb zip shards, referenced from any table. Read them fast anywhere.
A Blob Pack is a directory of uncompressed (STORED) zip shards. A dataset built on it is a Blob-Referenced Columnar Dataset (BRCD): columnar tables hold the structured data, and each media blob stays in a pack, referenced from a table cell by a plain string. Neither is a new format: any zip tool can read the packs, any table library can read the tables, no library is required to consume a BRCD, and your media bytes are stored unchanged.
pip install blobpack
No dependencies in the core. Python >= 3.9.
import os
from blobpack import PackWriter, PackSet
# write: one directory of rolling shards (4 GiB files by default)
with PackWriter("media") as writer:
refs = [writer.add(f"images/{i:04d}.jpg", os.urandom(1024)) for i in range(1000)]
# refs[0] == "zip://images/0000.jpg::media/pack-0000.zip"
# read: a shard opens on first touch, then one positioned read per blob
with PackSet("media") as packs:
data = packs.read(refs[0]) # or packs.read("images/0000.jpg")
batch = packs.read_many(refs, workers=8) # concurrent, input order
# big blobs: a bounded seekable file object, nothing loaded up front
with packs.open(refs[0]) as handle:
header = handle.read(2) # hand to a decoder; seeks stay inside this blob
# epoch pattern: shuffled shards, sequential within each shard,
# split across dataloader workers by member range
for key, data in packs.iter_blobs(shuffle_shards=True, seed=0, worker_id=0, num_workers=4):
...writer.add_file(key, path) streams an existing file in without holding
it in memory. From the shell:
blobpack pack ./images ./media # files -> shards
blobpack verify ./media # STORED + unique keys + full CRC pass
blobpack ls ./media
blobpack unpack ./media ./restored
How it works — reference anatomy, offsets, integrity
A reference has two parts, and the table stores it as an ordinary string:
zip://images/0000.jpg::media/pack-0000.zip
^ member name ^ shard path, relative to the dataset root
The relative shard path is what keeps a dataset folder self-contained when
it moves. PackSet.read takes a full reference (which names and checks its
shard) or a bare member name, resolved through the set's unique index.
Every member is contiguous and uncompressed, so PackSet indexes offsets
once, then serves each blob with one positioned read locally or one range
request on object storage. Before a member's bytes are served its local
header is checked against the central directory, on the member's first read
and next to the payload it guards; PackSet(..., validate_on_open=True)
checks every member at open instead. The fast path skips per-read CRC checks
by design: run blobpack verify (the full at-rest pass) after writing or
copying a pack, and blobpack manifest records a SHA-256 per shard for
distribution.
And because a shard is a plain zip archive, blobpack is never required to get your bytes back:
unzip -p media/pack-0000.zip images/0000.jpg > out.jpg

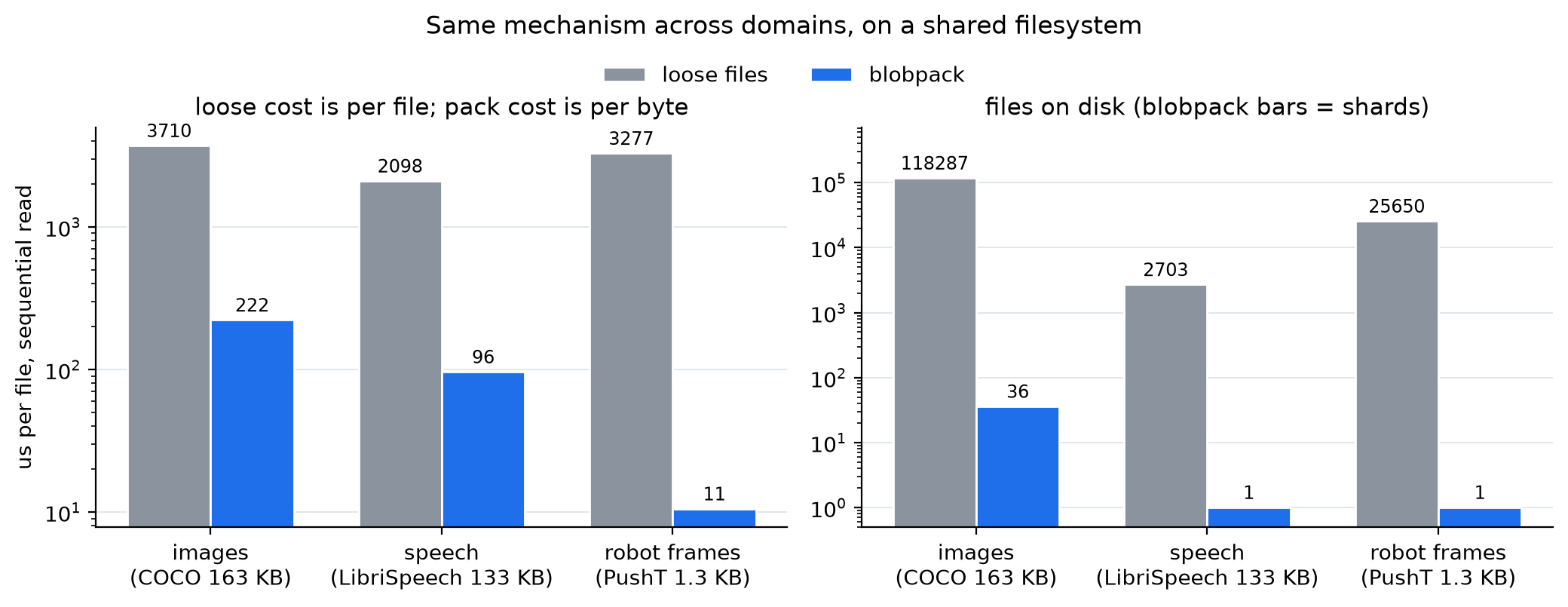

Every modality hits the same wall: millions of small files are miserable to store, copy, and read, while burying the bytes inside a table makes every random read expensive. A BRCD separates the two concerns — tables keep the annotations, packs keep the payloads:
| domain | what a blob is | what it replaces |
|---|---|---|
| vision | one JPEG or PNG per sample | 100K+ loose files, or bytes embedded in parquet |
| audio | one utterance (FLAC/WAV/OPUS) | millions of tiny clip files |
| robotics | one episode video, addressed by time interval | per-frame images, or a bespoke episode layout |
The mechanism is the same everywhere: a loose-file read costs per file (milliseconds of metadata, whatever the size — the exact cost varies with filesystem and layout), while a pack read costs per byte. The gap is therefore widest where files are small and many:
Six things a dataset team ends up needing, in the regime blobpack targets
(many media blobs, shared or object storage) — starting with holding
millions of blobs as tens of files. ✅ out of the box ·
| few files on disk | random access | sequential epochs | plain-tools read | S3 / Hub ranges | keeps your tables | |
|---|---|---|---|---|---|---|
| blobpack | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ |
| loose files | ❌ | ✅ | ❌ | ✅ | ✅ | ✅ |
| WebDataset | ✅ | ✅ | ✅ | |||
| Lance | ✅ | ✅ | ✅ | ❌ | ✅ | ❌³ |
| bytes in parquet | ✅ | ✅ | ❌ | ✅ |
¹ with a sidecar index (e.g. wids) · ² the WebDataset idiom keeps annotations inside shards, next to each sample · ³ payloads are only reachable through the Lance engine, and the table itself becomes Lance · ⁴ row-group granularity; shrinking row groups to approximate random access trades away parquet's own scan efficiency
Every alternative either gives something up or needs extra machinery to get it back; blobpack needs neither, in exchange for one hard scope line: it holds immutable blobs and lets anything address them, full stop. Tables, queries, and mutation stay in whatever you already use — Hugging Face Datasets, parquet, or Lance when you need column queries and updates. Skip blobpack when data mutates in place, when a pure byte-pipe stream with no seeks is all you need (tar's one exclusive trick), or for millions of tiny scalars, which belong in the table.

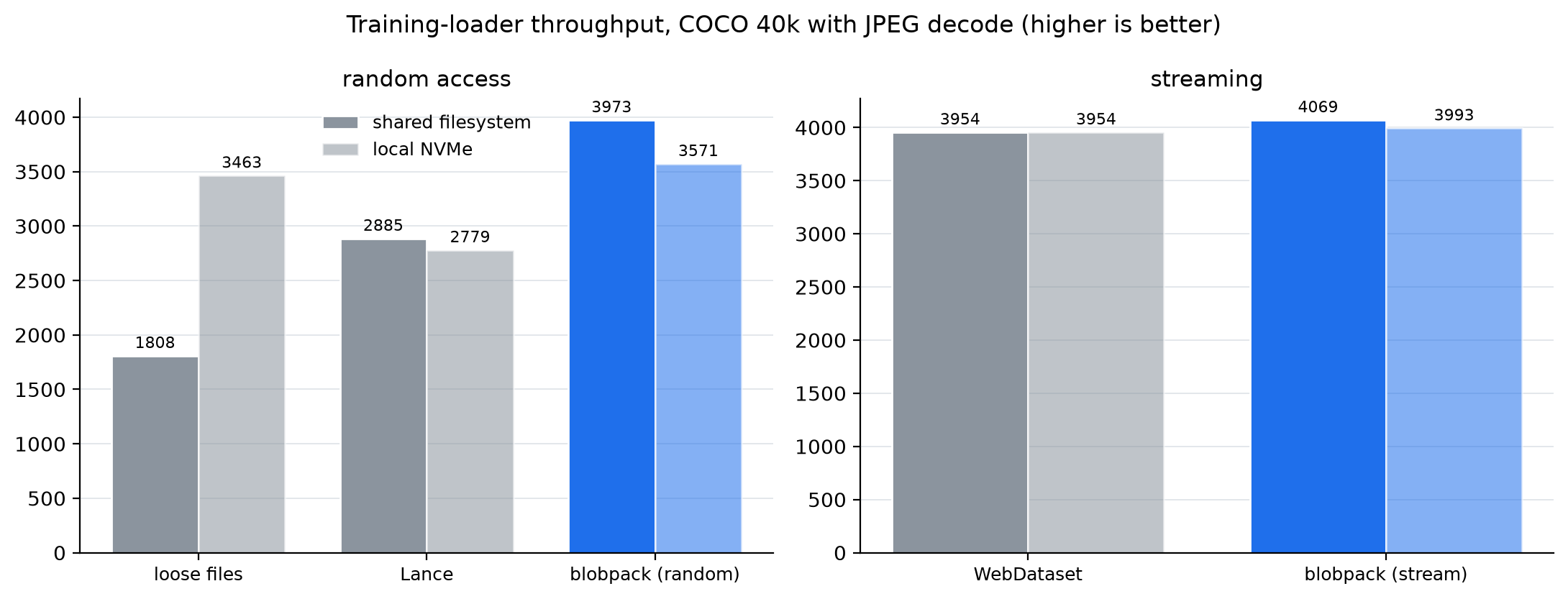

Measured end to end through a torch DataLoader with persistent workers decoding every JPEG (COCO train2017, 40,000 images):
On a shared cluster filesystem, blobpack sustains 2.2x loose files on
random access and edges past WebDataset when streaming — while keeping
random access, which streaming formats give up. On local NVMe every format
converges because JPEG decoding becomes the bottleneck; there the isolated
storage layer serves blobs at 0.035 ms each, 21.5x faster than stock

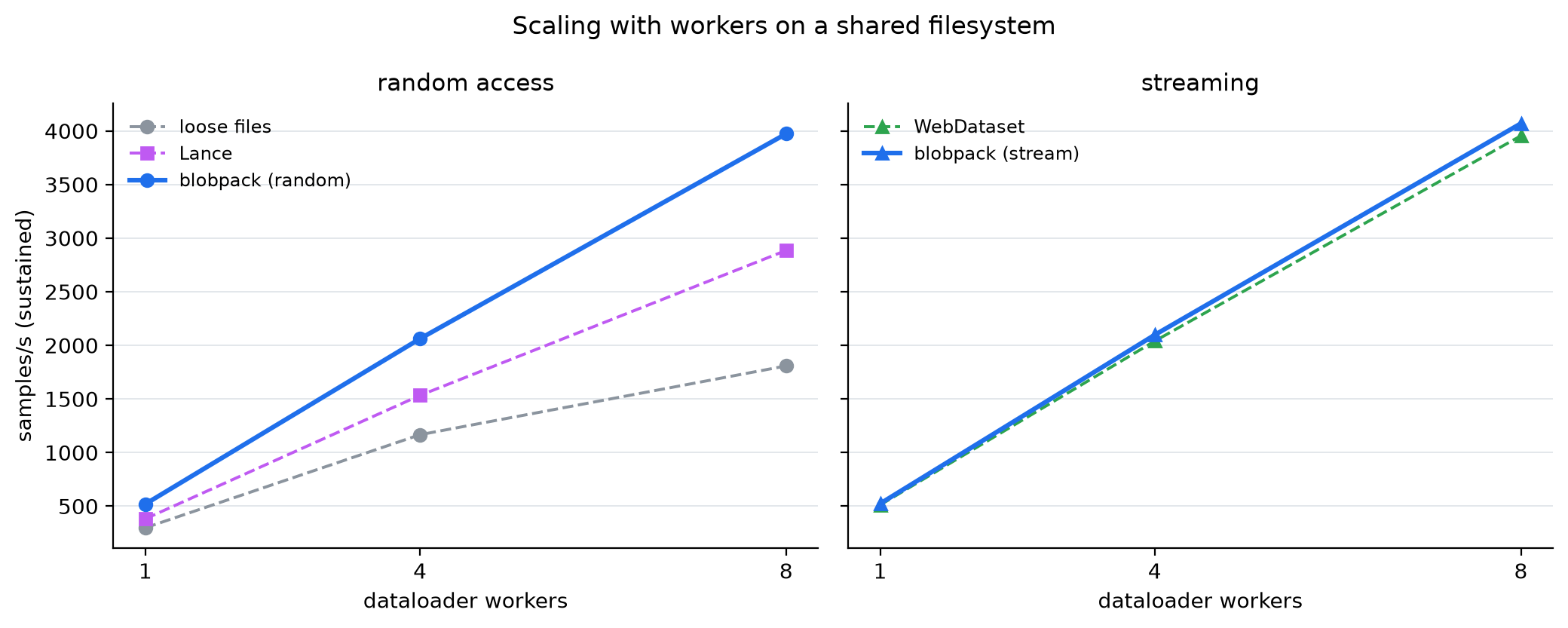

zipfile on the same shards. With workers, blobpack's random access scales as
the streaming formats do, while loose files flatten on shared storage:
Startup is small by default: members are validated on first read, so a
40,000-member set on shared storage gives its first batch in 0.6 s (11 s
with validate_on_open=True). Full
methodology, audio and video results, startup and shard-size sweeps, and
every caveat: benchmarks/.
Hugging Face Datasets is one table interface for BRCD; other table libraries can store the same references. References are plain strings, so tables need nothing special:
from datasets import Dataset, load_from_disk
from blobpack import PackWriter, PackSet
with PackWriter("dataset/media") as writer:
refs = [writer.add(f"img/{i:06d}.jpg", img) for i, img in enumerate(images)]
Dataset.from_dict({"image_ref": refs, "label": labels}).save_to_disk("dataset/table")
# ... later, anywhere the folder was copied to:
ds = load_from_disk("dataset/table")
packs = PackSet("dataset/media")
img = packs.read(ds[0]["image_ref"])Everything under dataset/ is relative, so the folder is self-contained:
move it across machines or clusters and it keeps working.
A bare-key read (or len, keys) on a newly constructed PackSet parses
every shard's index — fine for thousands of blobs, wasteful for millions. Read by the
references PackWriter returns instead: a reference names its shard, so a
process opens only the shards it reads.
packs.read("zip://images/0000.jpg::media/pack-0000.zip") # opens pack-0000.zip alonePacks work unchanged on anything fsspec speaks: the index builds from
batched concurrent range reads, each blob is one ranged request, and a
backend that ignores byte ranges is refused rather than silently
downloading whole shards. Protocols need their backend package
(pip install "blobpack[remote]" s3fs):
packs = PackSet("s3://bucket/dataset/media", storage_options={"anon": False})
data = packs.read("images/0000.jpg")
# or bring your own configured filesystem: PackSet.from_fs(fs, "bucket/dataset/media")A pack dataset is an ordinary folder: publish with upload_folder, and
consumers stream blobs straight off the Hub or download as usual
(pip install "blobpack[remote]" huggingface_hub):
from huggingface_hub import HfApi
from blobpack import PackSet
REPO = "your-name/your-dataset"
api = HfApi()
api.create_repo(REPO, repo_type="dataset", exist_ok=True)
api.upload_folder(repo_id=REPO, repo_type="dataset", folder_path="dataset")
packs = PackSet(f"hf://datasets/{REPO}/media") # no download; ranged readsexamples/hf_hub.py runs the whole loop, and a live three-domain demo — PASS images, LibriSpeech utterances, and PushT episodes — is up at MilkClouds/blobpack-demo.
Existing datasets convert in one command, and nothing is ever re-encoded:
media bytes come out of a conversion exactly as they went into the source.
Three layouts are supported, each behind its own extra
(pip install "blobpack[parquet]" / "blobpack[lance]"; WebDataset needs
none):
| source | command | what happens |
|---|---|---|
| WebDataset | blobpack convert-wds |
tar members stream into indexed zip shards, keys preserved |
| Parquet | blobpack convert-parquet |
selected binary columns or struct leaves move to packs; other fields stay in the table |
| Lance | blobpack convert-lance |
chosen binary columns move to packs; the Lance table survives |
WebDataset conversion changes nothing but the container, so it just runs.
The other two can rewrite table schemas, so they print a plan of exactly
what each feature or column will become and wait for your confirmation
(--dry-run stops at the plan, --yes skips the prompt). Per-source
detail folds out below.
From WebDataset — streaming pass, keys preserved, random access gained
WebDataset tar shards (the format behind OpenCLIP/LAION, open-diffusion, and DataComp pipelines) convert in one streaming pass, keys preserved:
blobpack convert-wds ./shards ./media # *.tar -> packs
blobpack convert-wds ./shards ./media --shard-prefix # if keys repeat across tars
before after
shards/ media/
shard-0000.tar pack-0000.zip
000000.jpg 000000.json 000000.jpg 000000.json
000001.jpg 000001.json 000001.jpg 000001.json
shard-0001.tar pack-0001.zip
000002.jpg 000002.json 000002.jpg 000002.json
sequential only, no member index same bytes, plus a member index:
random reads, sub-shard worker splits
Cold sequential reads measured identical for uncompressed tar and packs,
so streaming loses nothing; the conversion adds random access without a
sidecar .idx, sub-shard worker splitting, verify, and none of tar's
512-byte framing overhead on small blobs.
From Parquet — explicitly selected binary fields become blob references
blobpack convert-parquet ./data ./out --column audio --yes
blobpack convert-parquet ./data ./out --field observation.image bytes --yes--column selects a literal top-level binary column; --field takes literal
struct-path components. Dots in names are not separators. The second example
replaces only the bytes child with a string reference, preserving path,
other fields and null masks. No media is decoded and external paths are not
followed. Every selected field must exist and be binary in every input file.
Use --dry-run to inspect selected fields and row counts without writing.
Output contains tables/ (the input Parquet file layout), media/, and
extraction.json. Non-Parquet files are not copied. Batches contain at most
128 rows; individual large payloads can exceed ordinary memory budgets.
The destination must be new and disjoint from the source; failures remove
partial output.
The receipt archives each original Arrow schema, including metadata, as base64 Arrow IPC. HF/Pandas schema metadata is omitted from rewritten tables because it describes a different physical representation. Other schema metadata is retained. Applications read the output's explicit schema and string references.
Dataset-level robot interpretation and BRCD conversion use Epishelf's common
epishelf convert path. Column extraction does not interpret episode boundaries,
clocks or actions.
From Lance — you pick the payload columns; the table survives as Lance
A Lance dataset carrying payloads in a binary column has the same shape as frames in parquet: the scalar columns stay useful, but the bytes are only reachable through the table engine. Extraction moves them out and leaves everything else alone:
before after
data.lance out/
id int64 table.lance
label string id int64
img large_binary <- payloads label string
img string <- "zip://img/…"
media/pack-0000.zip
img/000000000000.bin
Lance records no convention for which column is media, so nothing is guessed. Candidates are measured and sniffed, and you choose:
$ blobpack convert-lance ./data.lance ./out
Lance dataset at data.lance - 500 rows
image binary column 500 values, JPEG, 146.5 KB mean
sha256 binary column 500 values, unrecognized, 32 B mean
embedding binary column 500 values, unrecognized, 3.0 KB mean
Which columns hold payloads to extract?
1) image 500 values, JPEG, 146.5 KB mean (146.5 KB-146.5 KB)
2) sha256 500 values, unrecognized, 32 B mean (32 B-32 B)
3) embedding 500 values, unrecognized, 3.0 KB mean (3.0 KB-3.0 KB)
Numbers, comma separated, or 'all' (blank aborts): 1
Scripts name them instead: --column image --yes. Running --yes without
--column is an error rather than a guess, since extracting a column of
hashes would be worse than doing nothing.
The output is still a Lance dataset, so filters and column queries keep
working; only the payloads have moved out from under the engine. Both
storage shapes are handled: an ordinary binary/large_binary column and
Lance's blob storage class.
SPEC.md defines the format contract in one page: STORED zip shards as the default container, size and count limits, reference syntax, and immutability, plus the BRCD layout for tables that reference blobs. This repository is one reference implementation of that contract. For timestamped media references and decoding, see MediaRef.
Apache-2.0
